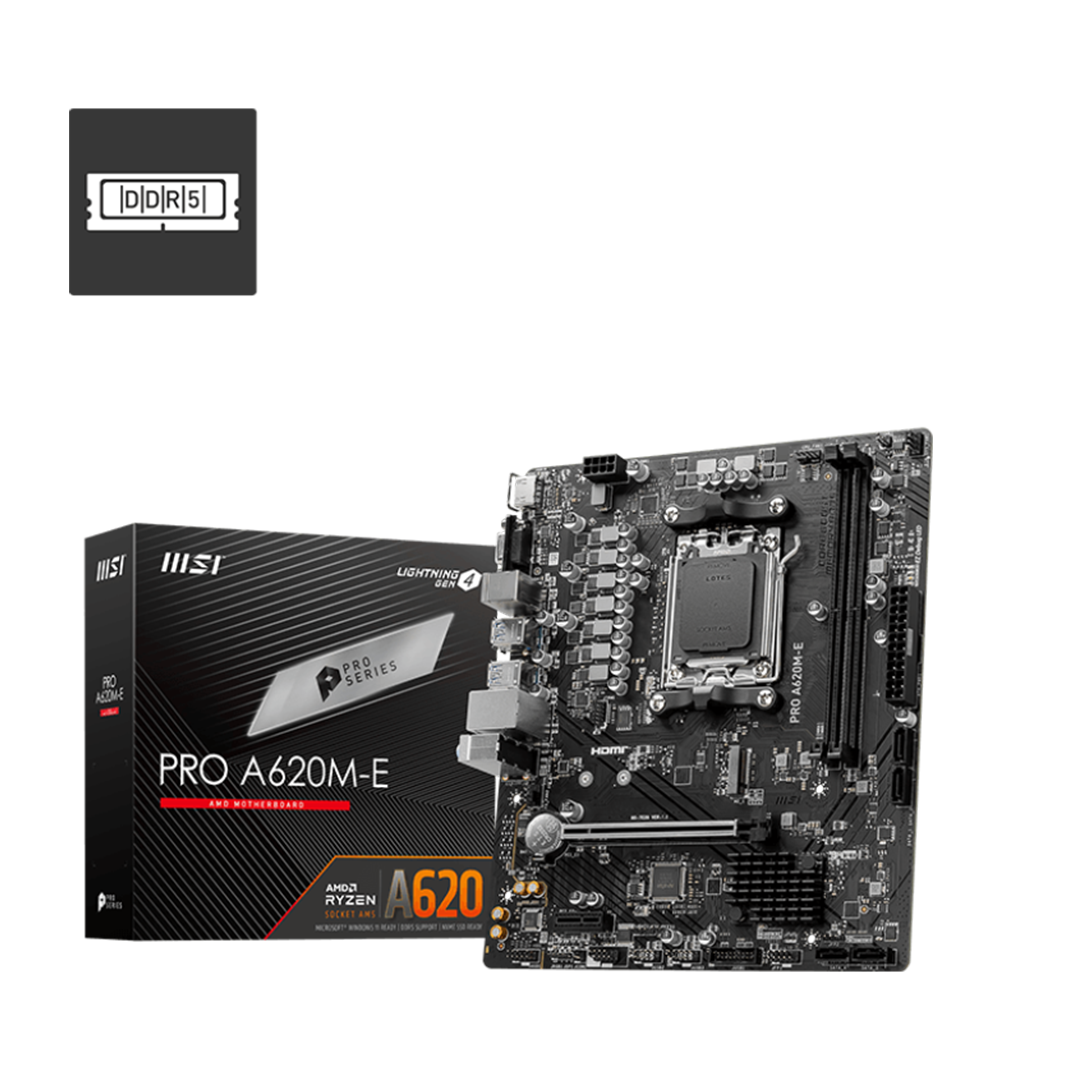

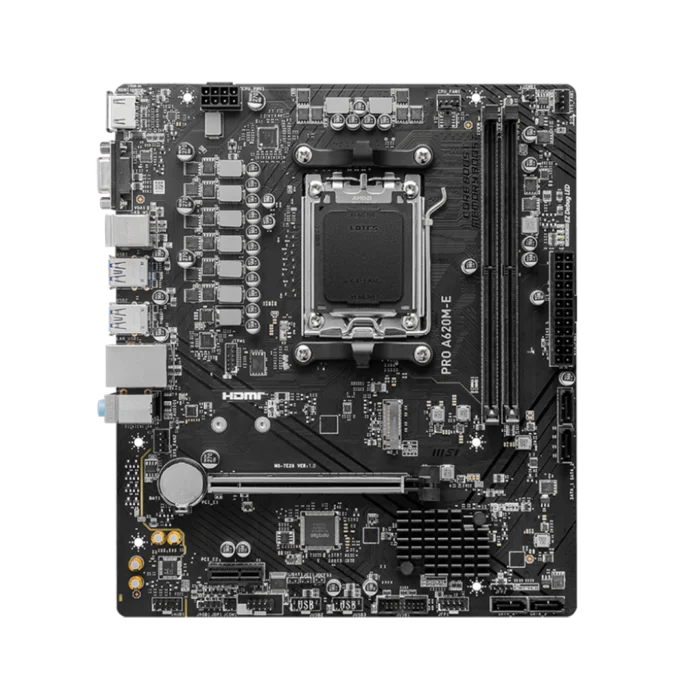

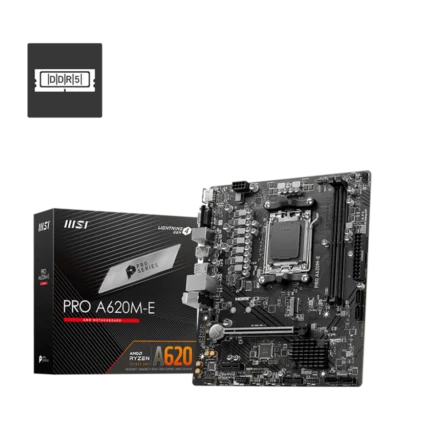

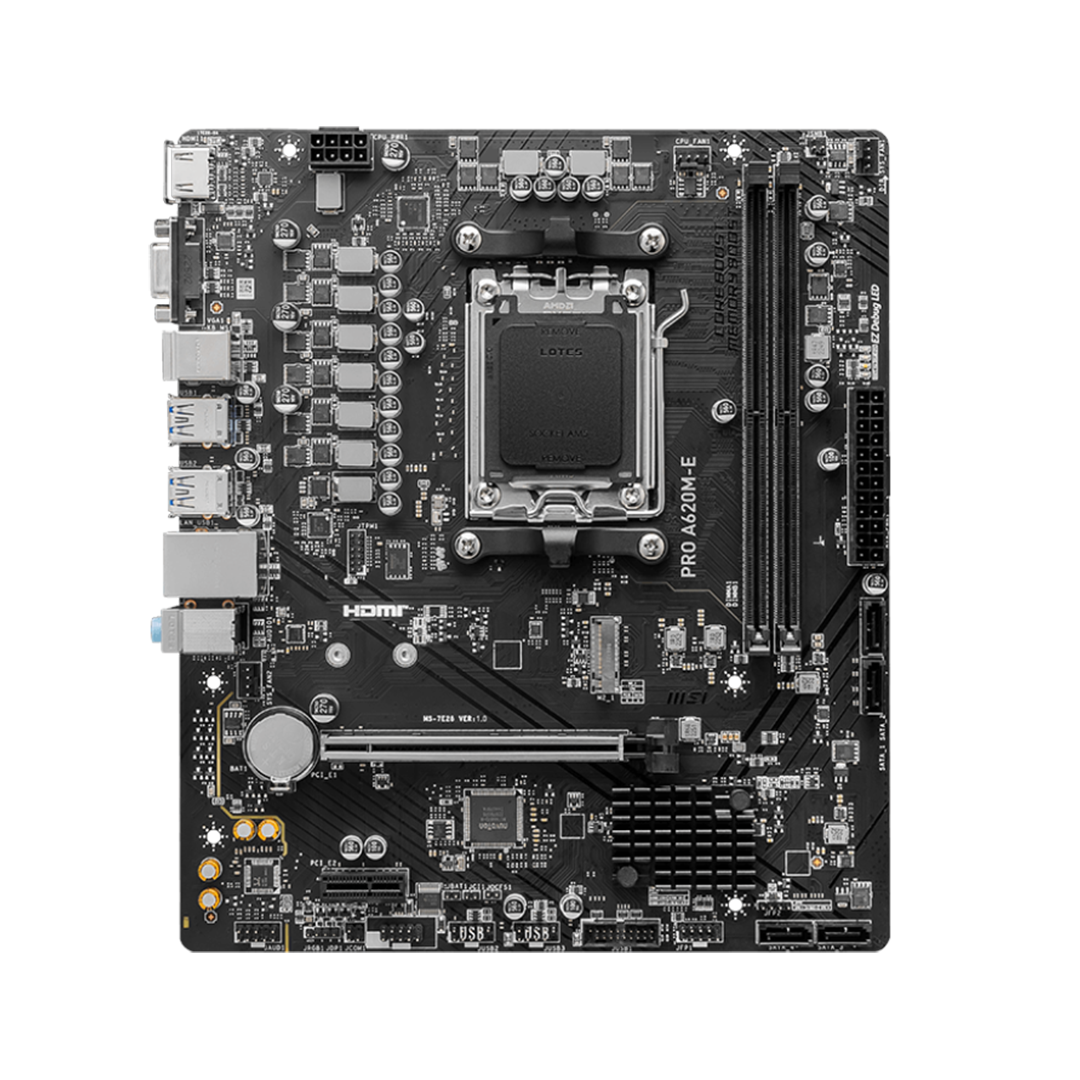

MSI A620M-E Pro DDR5 Motherboard(3Y WARRANTY)
Cash Discount Price
LKR 35,000.00
» Brand : MSI
» Form Factor : ATX
» CPU Socket Type : AMD AM5
» RAM TYPE : DDR5
Pre-Order
All pre-order items can be arranged within 24 hours.
Pre-Order on WhatsApp
Description
| CHIPSET | AMD A620 | ||||||||||||||
| CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors | ||||||||||||||
| Socket AM5 | |||||||||||||||
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB | ||||||||||||||
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |||||||||||||||
| Max. overclocking frequency: | |||||||||||||||
| • 1DPC 1R Max speed up to 6800+ MHz | |||||||||||||||
| • 1DPC 2R Max speed up to 6000+ MHz | |||||||||||||||
| Supports Dual-Channel mode | |||||||||||||||
| Supports non-ECC, un-buffered memory | |||||||||||||||
| Supports AMD EXPO | |||||||||||||||
| ONBOARD GRAPHICS | 1x HDMI™ | ||||||||||||||
| Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |||||||||||||||
| 1x VGA | |||||||||||||||
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | |||||||||||||||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |||||||||||||||
| SLOT | 1x PCI-E x16 slot | ||||||||||||||
| 1x PCI-E x1 slot | |||||||||||||||
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |||||||||||||||
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |||||||||||||||
| STORAGE | 1x M.2 | ||||||||||||||
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |||||||||||||||
| 4x SATA 6G | |||||||||||||||
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | ||||||||||||||
| USB | 2x USB 2.0 (Rear) | ||||||||||||||
| 4x USB 2.0 (Front) | |||||||||||||||
| 4x USB 3.2 Gen1 Type A (Rear) | |||||||||||||||
| 2x USB 3.2 Gen1 Type A (Front) | |||||||||||||||
| LAN | Realtek® RTL8111H Gigabit LAN | ||||||||||||||
| AUDIO | Realtek® ALC897 Codec | ||||||||||||||
| 7.1-Channel High Definition Audio | |||||||||||||||
| INTERNAL IO | 1x Power Connector(ATX_PWR) | ||||||||||||||
| 1x Power Connector(CPU_PWR) | |||||||||||||||
| 1x CPU Fan | |||||||||||||||
| 2x System Fan | |||||||||||||||
| 2x Front Panel (JFP) | |||||||||||||||
| 1x Chassis Intrusion (JCI) | |||||||||||||||
| 1x Front Audio (JAUD) | |||||||||||||||
| 1x Com Port (JCOM) | |||||||||||||||
| 1x RGB LED connector(JRGB) | |||||||||||||||
| 1x TPM pin header(Support TPM 2.0) | |||||||||||||||
| 4x USB 2.0 ports | |||||||||||||||
| 2x USB 3.2 Gen1 Type A ports | |||||||||||||||
| 4x EZ Debug LED | |||||||||||||||
| LED FEATURE | 4x EZ Debug LED | ||||||||||||||

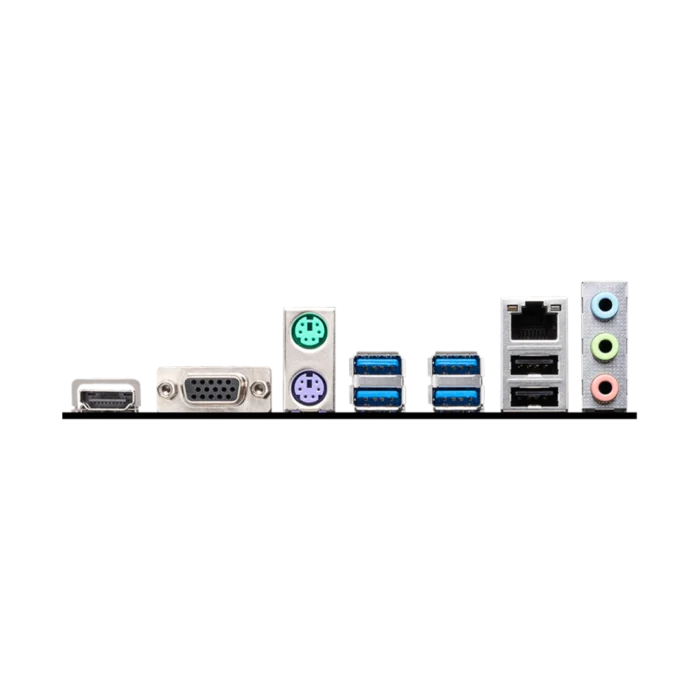

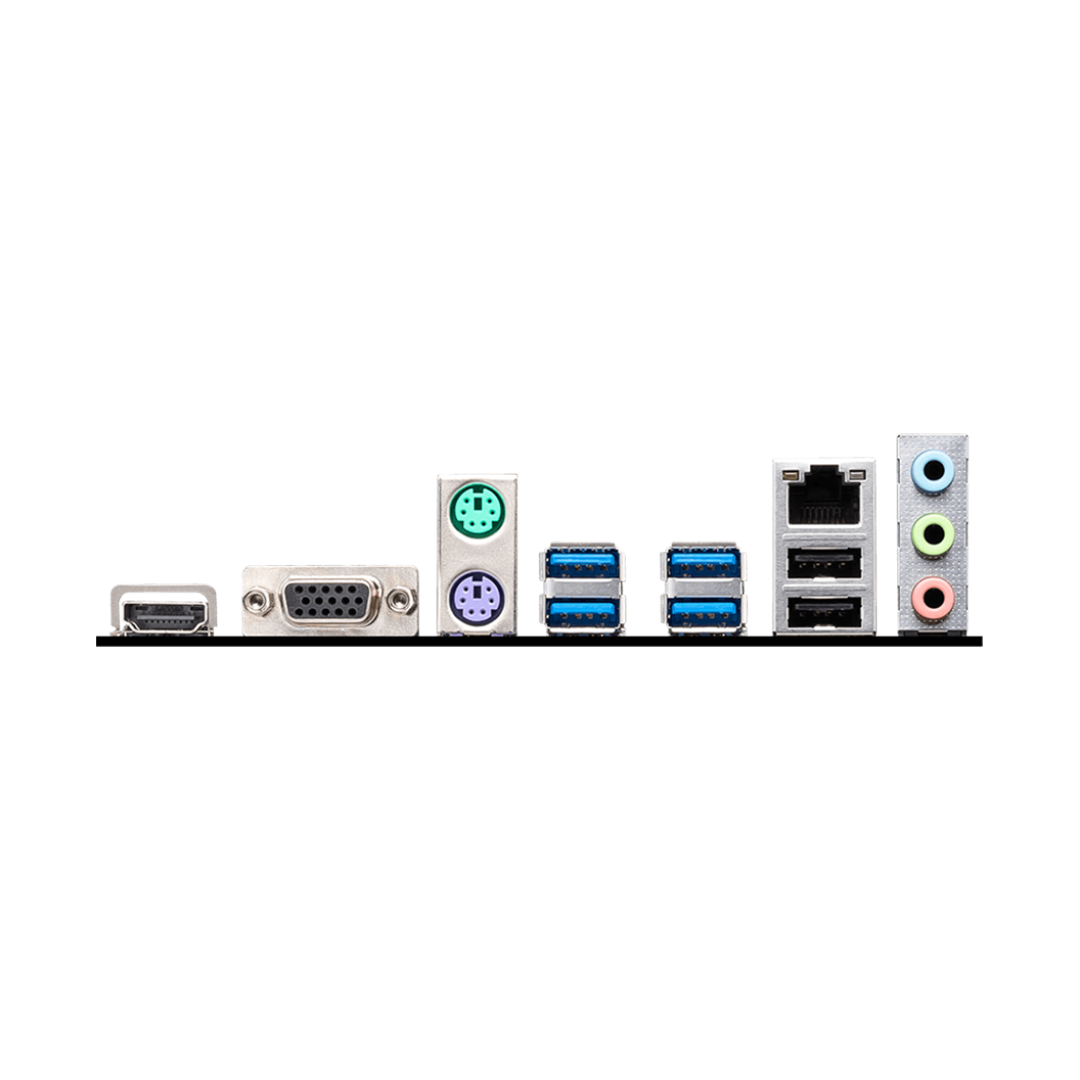

| BACK PANEL PORTS | HDMI™ | ||||||||||||||
| VGA | |||||||||||||||
| Keyboard/Mouse | |||||||||||||||
| USB 3.2 Gen 1 5Gbps (Type-A) | |||||||||||||||
| LAN port | |||||||||||||||
| Audio connectors | |||||||||||||||
| USB 2.0 | |||||||||||||||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | ||||||||||||||
| PCB INFO | mATX | ||||||||||||||
| 211mmx243.84mm | |||||||||||||||
Reviews (0)
RELATED PRODUCTS
GIGABYTE A520M K V2 ULTRA DURABLE MOTHERBOARD (3Y WARRANTY)
In stock
LKR 24,500.00
3 x LKR 8,983.33 with

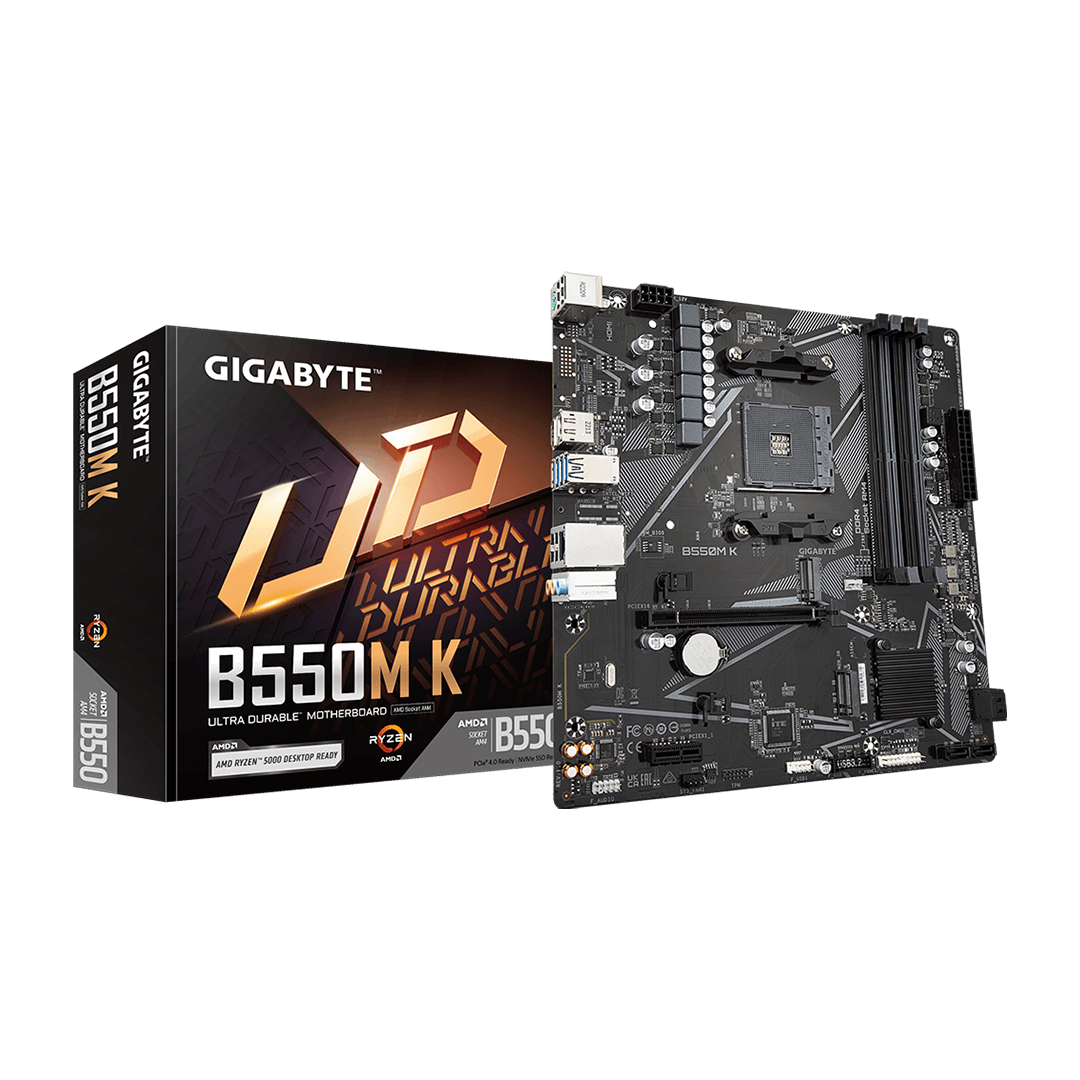

GIGABYTE B550M K ULTRA DURABLE MOTHERBOARD (3Y WARRANTY)
