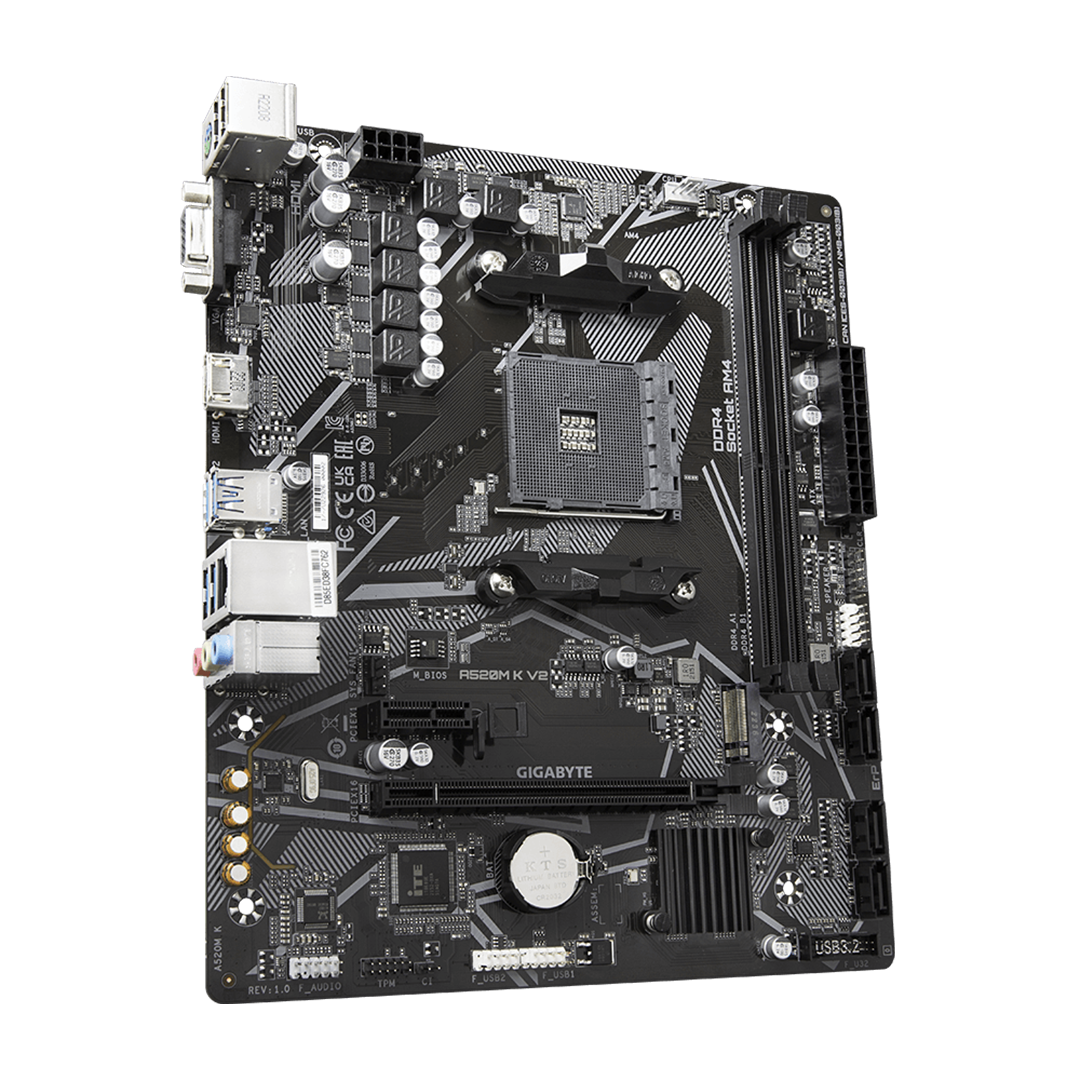

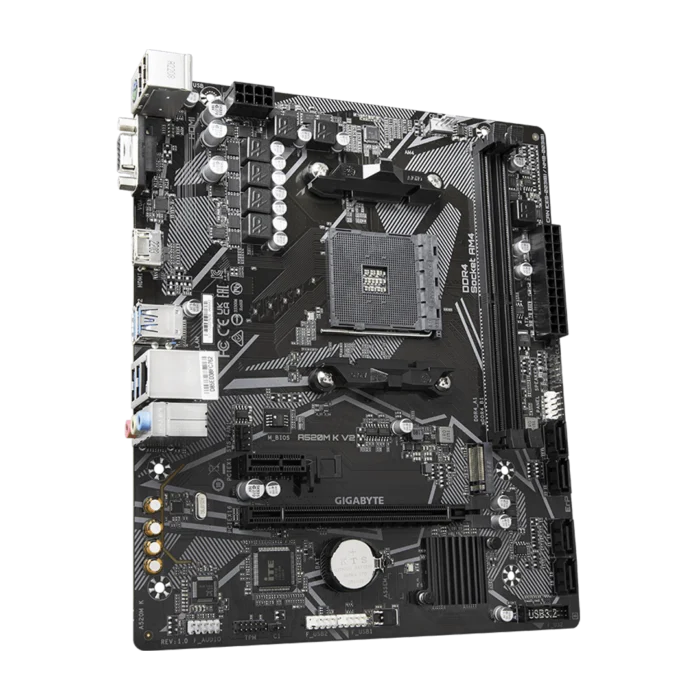

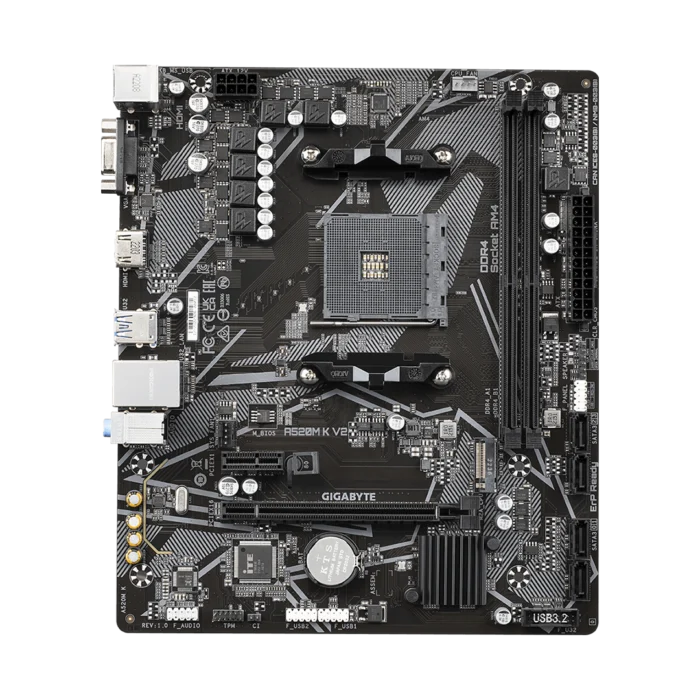

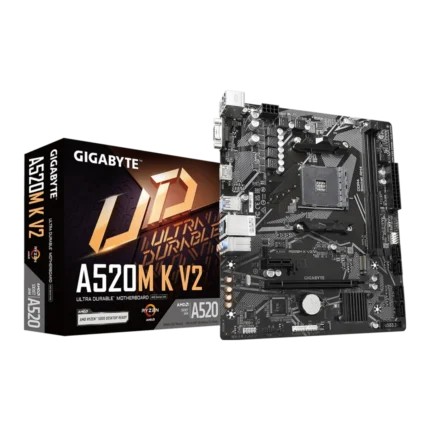

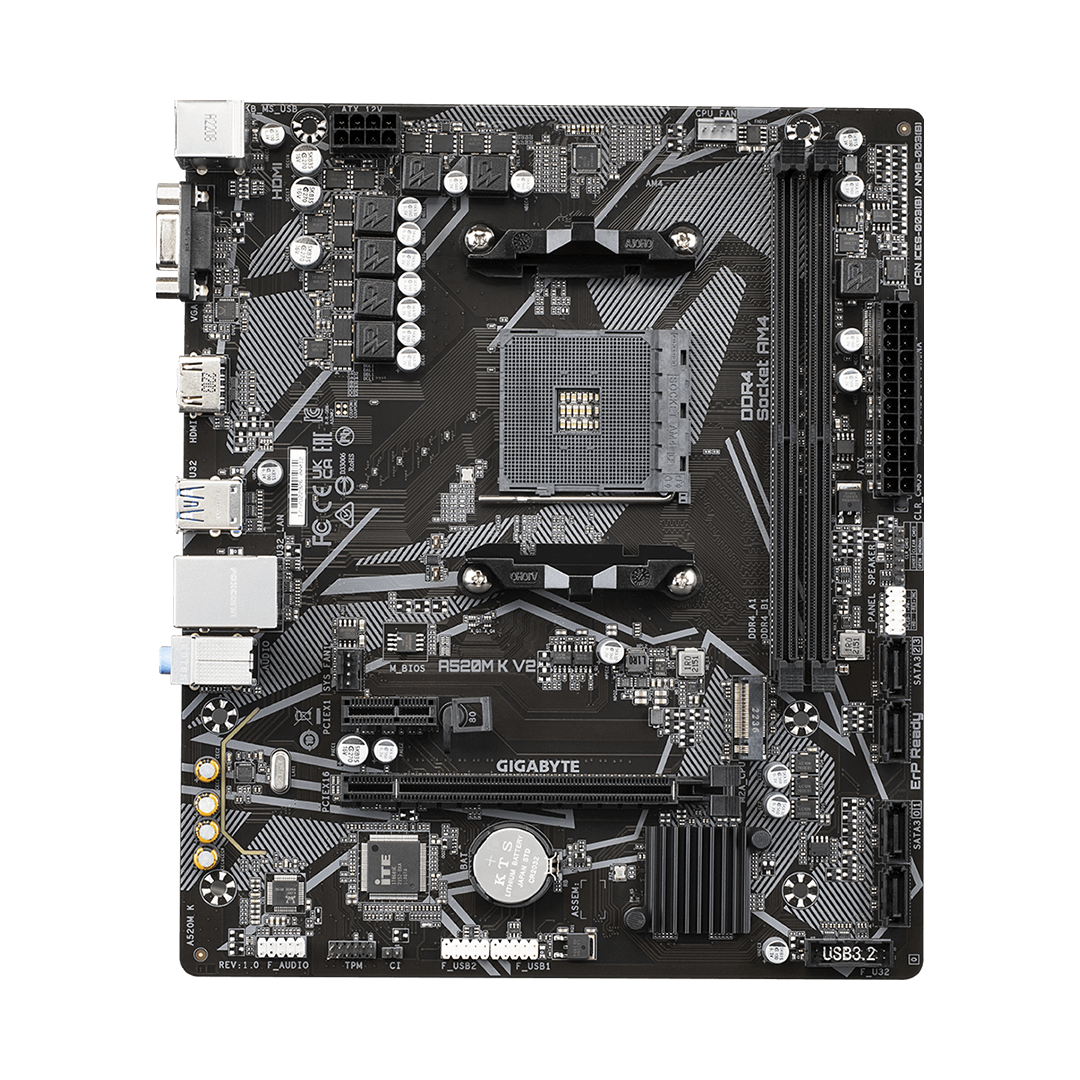

GIGABYTE A520M K V2 ULTRA DURABLE MOTHERBOARD (3Y WARRANTY)
Cash Discount Price
LKR 24,500.00
- » Brand : GIGABYTE
- » RAM TYPE : DDR4
- » CPU Socket Type : AM4
1 in stock
Description
| CPU | AMD Socket AM4, supports Ryzen™ 5000 G/5000/4000 G/3000 Series Processors |
| Chipset | AMD A520 |
| Memory | 2 x DDR4 DIMM sockets, up to 64 GB Supports DDR4 2133–5100 MHz (OC) Dual channel architecture, ECC/Non-ECC Un-buffered DIMM support Supports Extreme Memory Profile (XMP) |
| Onboard Graphics | D-Sub: max 1920×1200@60Hz HDMI: max 4096×2160@60Hz HDMI 2.1, HDCP 2.3, HDR supported Max shared memory: 16 GB |
| Audio | Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel (configurable via software) |
| LAN | Realtek® GbE LAN chip (1 Gbps) |
| Expansion Slots | 1 x PCIe x16 slot (PCIe 3.0 x16) 1 x PCIe x1 slot (PCIe 3.0 x1) |
| Storage Interface | 1 x M.2 Socket 3 (PCIe 3.0 x4/x2 & SATA) 4 x SATA 6Gb/s ports Supports RAID 0/1/10 |
| USB Ports | Back Panel: 4 x USB 3.2 Gen 1, 2 x USB 2.0 Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0 via headers |
| Internal I/O | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V 1 x CPU fan, 1 x system fan header 1 x M.2, 4 x SATA 1 x front panel, audio, speaker header USB 3.2 Gen 1, USB 2.0 headers TPM, chassis intrusion, Clear CMOS jumper |
| Back Panel I/O | 1 x PS/2 keyboard/mouse 1 x D-Sub, 1 x HDMI 4 x USB 3.2 Gen 1, 2 x USB 2.0 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection Fan fail warning, fan speed control (cooler dependent) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS Supports PnP, DMI 2.7, ACPI 5.0, etc. |
| Unique Features | APP Center, @BIOS, EasyTune, Smart Backup System Information Viewer, Q-Flash, Xpress Install |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11/10 64-bit |
| Form Factor | Micro ATX; 23.3cm x 19.8cm |
