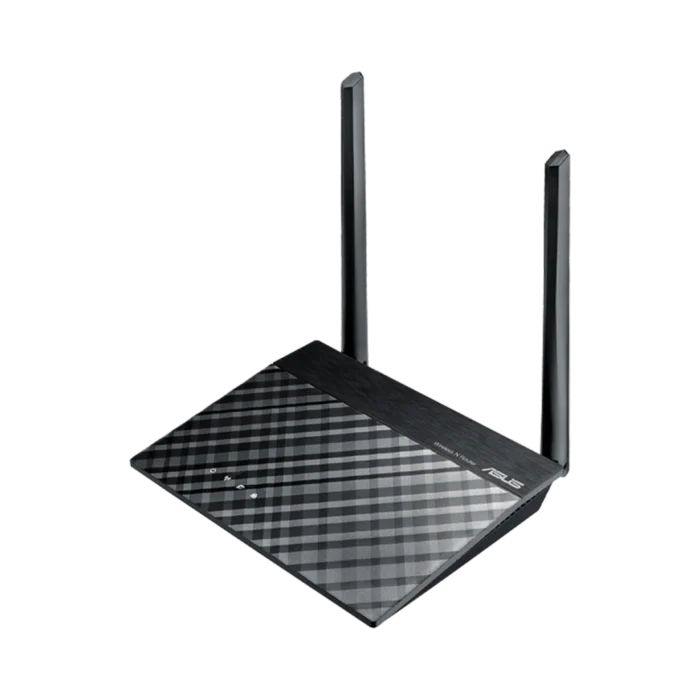

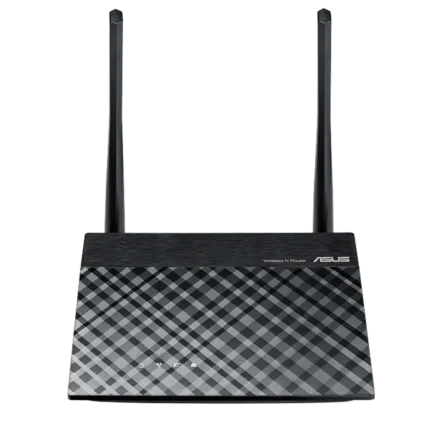

ASUS RT-N12+B1 3 IN 1 ROUTER/AP/RANGE EXTENDER (1Y WARRANTY)

Model

RT-N12+ B1

Network Standard

IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
IPv4
IPv6

WiFi Data Rate

802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps

Antenna

Fixed antenna x 2

Transmit / Receive

MIMO technology
2.4GHz 2×2

Memory

8 MB Flash, 32 MB RAM

Operating Frequency

2.4G Hz

Operating Mode

Accesspoint, Router

I/O Ports

RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4

Buttons

WPS Button, Reset Button

LED Indicator

Power x 1
Wi-Fi x 1
WAN x 1
LAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current

Package Content

RT-N12+ B1 Router x 1
Warranty Card x 1
Power Supply x 1
*Package content varies according to local requirements of each country

Product Weight (g)

168.9 g

Product Dimensions

146 x 111 x 28 ~ mm (WxDxH)

Parental Control

“Allow you to block access to unwanted websites and apps.”
Customized Internet Schedule

Guest Network

“The Guest Network provides Internet connection for guests but restricts access to your local network.”
* Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2-Personal

Security

Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
* Maximum Firewall Keyword Filter : 64
* Maximum Firewall Network Service Filter : 32
* Maximum Firewall URL Filter : 64

VPN

VPN Client L2TP
VPN Client PPTP
VPN Server PPTP

Traffic Control

* Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
— Maximum Traditional QoS Rule : 32
Traffic Monitor
* Real-time Traffic Monitor
* Wired Traffic Monitor
* Wireless Traffic Monitor
* Traffic Analysis Period : Daily, Weekly, Monthly

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
* Maximum Port Forwarding Rule : 64
Port triggering
* Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
* Maximum MAC Filters : 64
Wireless Scheduler
RADIUS Client

USB application

File System : No

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
